Using Google Spread Sheet AS DataBase for Android application part-1

While working with some android application, a thought came into my mind that is “Can I use Google Spread Sheet As Back end Source Data Base ? “. Yes after many experiments finally found some useful stuff which is simple to create and use it for simple applications.





In this article I am going to demonstrate on how to fetch data from Google Spread Sheet, how to parse fetched Data in android application. To understand this experiment one should have good understanding about basic android concepts, list view and adapters, Json parsing.



Download Source Code



1. Creating Google Spread Sheet URL

(update) :  You can use the below code to create your own script and publish it as web App then follow the steps below

function doGet(request) {
  var output  = ContentService.createTextOutput(),
      data    = {},
      id      = request.parameters.id,
      sheet   = request.parameters.sheet,
      ss      = SpreadsheetApp.openById(id);

  data.records = readData_(ss, sheet);

  var callback = request.parameters.callback;

  if (callback === undefined) {
    output.setContent(JSON.stringify(data));
  } else {
    output.setContent(callback + "(" + JSON.stringify(data) + ")");
  }
  output.setMimeType(ContentService.MimeType.JSON);

  return output;
}


function readData_(ss, sheetname, properties) {

  if (typeof properties == "undefined") {
    properties = getHeaderRow_(ss, sheetname);
    properties = properties.map(function(p) { return p.replace(/\s+/g, '_'); });
  }

  var rows = getDataRows_(ss, sheetname),
      data = [];

  for (var r = 0, l = rows.length; r < l; r++) {
    var row     = rows[r],
        record  = {};

    for (var p in properties) {
      record[properties[p]] = row[p];
    }

    data.push(record);

  }
  return data;
}



function getDataRows_(ss, sheetname) {
  var sh = ss.getSheetByName(sheetname);

  return sh.getRange(2, 1, sh.getLastRow() - 1, sh.getLastColumn()).getValues();
}


function getHeaderRow_(ss, sheetname) {
  var sh = ss.getSheetByName(sheetname);

  return sh.getRange(1, 1, 1, sh.getLastColumn()).getValues()[0];
}





Step 1 : Create your spread Sheet with suitable Attributes.

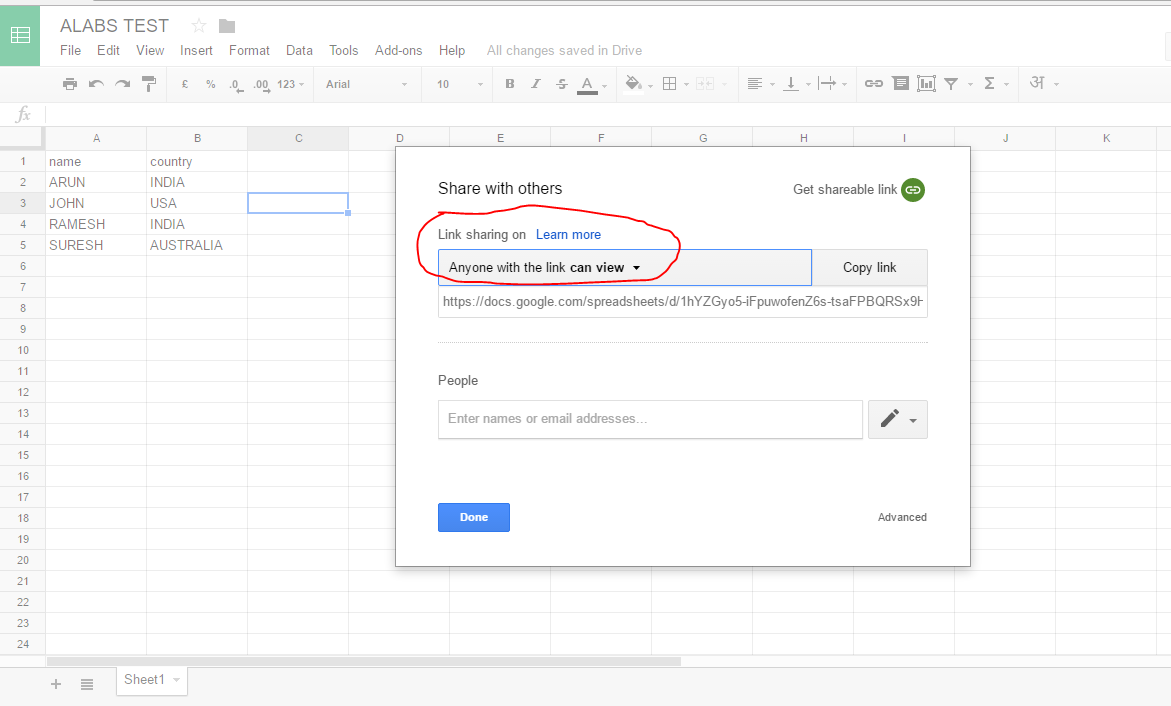

Step 2 : Share your document with option ‘anyone with the link can view’



gs1

Step 3 : Goto File -> Publish to web and publish the document.

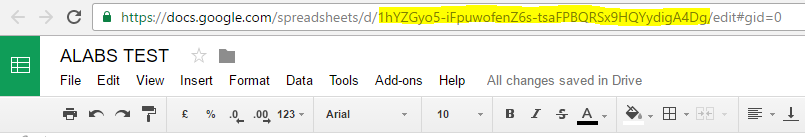

Step 4 : copy the document id (spread sheet id)



gs2

Step 5 : Replace your id in the below URL



update : you can use your published(deployed) script url.



https://script.google.com/macros/s/AKfycbxOLElujQcy1-ZUer1KgEvK16gkTLUqYftApjNCM_IRTL3HSuDk/exec?id=YOUR_SPREAD_SHEET_ID&sheet=Sheet1



Step 6 : Copy the URL and use it JSONparser.java (step 6 of Android part) class as input url




2. Android Part

Step 1 : Create a new project in Android Studio from File ⇒ New Project by filling the required details.

Step 2 : Open build.gradle file and add libraries required for this application.

apply plugin: 'com.android.application'

android {
    compileSdkVersion 23
    buildToolsVersion "23.0.1"
    defaultConfig {
        applicationId 'com.androidbuts.jsonparsing'
        minSdkVersion 10
        targetSdkVersion 23
        versionCode 1
        versionName "1.0"
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
    productFlavors {
    }
}

dependencies {
    compile fileTree(include: ['*.jar'], dir: 'libs')
    androidTestCompile 'junit:junit:4.12'
    compile 'com.android.support:appcompat-v7:23.1.0'
    compile 'com.android.support:design:23.1.0'
    compile 'com.squareup.okhttp:okhttp:2.4.0'
    compile 'com.squareup.okhttp:okhttp-urlconnection:2.2.0'
}


Step 3 : Open layout folder under resoursce and add the below content by creating/modifying activity_main.xml

ACTIVITY_MAIN.XML

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:id="@+id/parentLayout"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:context=".MainActivity">

    <android.support.design.widget.AppBarLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:theme="@style/AppTheme.AppBarOverlay">

        <android.support.v7.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:layout_height="?attr/actionBarSize"
            android:background="?attr/colorPrimary"
            app:popupTheme="@style/AppTheme.PopupOverlay" />

    </android.support.design.widget.AppBarLayout>

    <ListView  app:layout_behavior="@string/appbar_scrolling_view_behavior"
        android:id="@+id/listView"
        android:layout_width="fill_parent"
        android:layout_height="match_parent" />

    <android.support.design.widget.FloatingActionButton
        android:id="@+id/fab"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_margin="@dimen/fab_margin"
        android:src="@android:drawable/stat_sys_download" />

</android.support.design.widget.CoordinatorLayout>

Step 3.2 : Since we are using list view, copy this code to add elements to invidiual row in the list in layout_row_view.xml

layout_row_view.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    xmlns:fresco="http://schemas.android.com/apk/res-auto"
    android:orientation="vertical">

    <LinearLayout
        android:layout_width="match_parent"
        android:orientation="vertical"
        android:layout_centerVertical="true"
        android:layout_height="wrap_content"
        >
    <TextView
        android:id="@+id/textViewName"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="5dp"
        android:textAppearance="?android:textAppearanceLarge"
        tools:text="TextView" />

    <TextView
        android:id="@+id/textViewCountry"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="5dp"
        android:textAppearance="?android:textAppearanceMedium"
        tools:text="TextView" />

    </LinearLayout>
</RelativeLayout>

Step 4 : open MainActivity.java file and modify the code as below.

//MainActivity.java

package androidlabs.gsheets1;

import android.app.ProgressDialog;
import android.os.AsyncTask;
import android.os.Bundle;
import android.support.annotation.NonNull;
import android.support.annotation.Nullable;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.util.Log;
import android.view.Gravity;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ListView;
import android.widget.Toast;

import androidlabs.gsheets1.adapter.MyArrayAdapter;
import androidlabs.gsheets1.model.MyDataModel;
import androidlabs.gsheets1.parser.JSONParser;
import androidlabs.gsheets1.utils.InternetConnection;
import androidlabs.gsheets1.utils.Keys;
import com.facebook.drawee.backends.pipeline.Fresco;

import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

    private ListView listView;
    private ArrayList<MyDataModel> list;
    private MyArrayAdapter adapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Fresco.initialize(this);

        Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);

        /**
         * Array List for Binding Data from JSON to this List
         */
        list = new ArrayList<>();
        /**
         * Binding that List to Adapter
         */
        adapter = new MyArrayAdapter(this, list);

        /**
         * Getting List and Setting List Adapter
         */
        listView = (ListView) findViewById(R.id.listView);
        listView.setAdapter(adapter);
        listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                Snackbar.make(findViewById(R.id.parentLayout), list.get(position).getName() + " => " + list.get(position).getPhone(), Snackbar.LENGTH_LONG).show();
            }
        });

        /**
         * Just to know onClick and Printing Hello Toast in Center.
         */
        Toast toast = Toast.makeText(getApplicationContext(), "Click on FloatingActionButton to Load JSON", Toast.LENGTH_LONG);
        toast.setGravity(Gravity.CENTER, 0, 0);
        toast.show();

        FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
        fab.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(@NonNull View view) {

                /**
                 * Checking Internet Connection
                 */
                if (InternetConnection.checkConnection(getApplicationContext())) {
                    new GetDataTask().execute();
                } else {
                    Snackbar.make(view, "Internet Connection Not Available", Snackbar.LENGTH_LONG).show();
                }
            }
        });
    }

    /**
     * Creating Get Data Task for Getting Data From Web
     */
    class GetDataTask extends AsyncTask<Void, Void, Void> {

        ProgressDialog dialog;
        int jIndex;
        int x;

        @Override
        protected void onPreExecute() {
            super.onPreExecute();
            /**
             * Progress Dialog for User Interaction
             */

            x=list.size();

            if(x==0)
                jIndex=0;
            else
                jIndex=x;

            dialog = new ProgressDialog(MainActivity.this);
            dialog.setTitle("Hey Wait Please..."+x);
            dialog.setMessage("I am getting your JSON");
            dialog.show();
        }

        @Nullable
        @Override
        protected Void doInBackground(Void... params) {

            /**
             * Getting JSON Object from Web Using okHttp
             */
            JSONObject jsonObject = JSONParser.getDataFromWeb();

            try {
                /**
                 * Check Whether Its NULL???
                 */
                if (jsonObject != null) {
                    /**
                     * Check Length...
                     */
                    if(jsonObject.length() > 0) {
                        /**
                         * Getting Array named "contacts" From MAIN Json Object
                         */
                        JSONArray array = jsonObject.getJSONArray(Keys.KEY_CONTACTS);

                        /**
                         * Check Length of Array...
                         */


                        int lenArray = array.length();
                        if(lenArray > 0) {
                            for( ; jIndex < lenArray; jIndex++) {

                                /**
                                 * Creating Every time New Object
                                 * and
                                 * Adding into List
                                 */
                                MyDataModel model = new MyDataModel();

                                /**
                                 * Getting Inner Object from contacts array...
                                 * and
                                 * From that We will get Name of that Contact
                                 *
                                 */
                                JSONObject innerObject = array.getJSONObject(jIndex);
                                String name = innerObject.getString(Keys.KEY_NAME);
                                String country = innerObject.getString(Keys.KEY_COUNTRY);

                                /**
                                 * Getting Object from Object "phone"
                                 */
                                //JSONObject phoneObject = innerObject.getJSONObject(Keys.KEY_PHONE);
                                //String phone = phoneObject.getString(Keys.KEY_MOBILE);

                                model.setName(name);
                                model.setCountry(country);

                                /**
                                 * Adding name and phone concatenation in List...
                                 */
                                list.add(model);
                            }
                        }
                    }
                } else {

                }
            } catch (JSONException je) {
                Log.i(JSONParser.TAG, "" + je.getLocalizedMessage());
            }
            return null;
        }

        @Override
        protected void onPostExecute(Void aVoid) {
            super.onPostExecute(aVoid);
            dialog.dismiss();
            /**
             * Checking if List size if more than zero then
             * Update ListView
             */
            if(list.size() > 0) {
                adapter.notifyDataSetChanged();
            } else {
                Snackbar.make(findViewById(R.id.parentLayout), "No Data Found", Snackbar.LENGTH_LONG).show();
            }
        }
    }
}

Now the activity is devided into 3 modules

  1. Adapter – to handle list view
  2. Model – represents data format in list
  3. Parser – parses the json data obtained from google sheets.

for all these modules I am creating package and crate the respective class.





Step 5 : create a package model under main package ( in my example : package androidlabs.gsheets1 ) and create a class MyDataModel.java and add the following code. Make sure that Model matches your defined requirements and make necessary changes if required.

//MyDataModel

package androidlabs.gsheets1.model;

public class MyDataModel {

    private String name;

    private String country;


    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getCountry() {
        return country;
    }

    public void setCountry(String country) {
        this.country = country;
    }

}



Step 6 : create a package parser under main package ( in my example : package androidlabs.gsheets1😉 and create a class JSONparser.java and add the following code. Make sure that Model matches your defined requirements and make necessary changes if required. Here replace url with the of your published google sheet which I will describe in later steps.

package androidlabs.gsheets1.parser;

import android.support.annotation.NonNull;
import android.util.Log;

import com.squareup.okhttp.FormEncodingBuilder;
import com.squareup.okhttp.OkHttpClient;
import com.squareup.okhttp.Request;
import com.squareup.okhttp.RequestBody;
import com.squareup.okhttp.Response;

import org.json.JSONException;
import org.json.JSONObject;

import java.io.IOException;


public class JSONParser {

    private static final String MAIN_URL = "https://script.google.com/macros/s/AKfycbxOLElujQcy1-ZUer1KgEvK16gkTLUqYftApjNCM_IRTL3HSuDk/exec?id=1VvqZGfJBkvjDEtJfX1eK7_8OSdJxiVMEVu_rMeW3hOE&sheet=Sheet1";

    public static final String TAG = "TAG";

    private static final String KEY_USER_ID = "user_id";

    private static Response response;

    public static JSONObject getDataFromWeb() {
        try {
            OkHttpClient client = new OkHttpClient();
            Request request = new Request.Builder()
                    .url(MAIN_URL)
                    .build();
            response = client.newCall(request).execute();
            return new JSONObject(response.body().string());
        } catch (@NonNull IOException | JSONException e) {
            Log.e(TAG, "" + e.getLocalizedMessage());
        }
        return null;
    }

    public static JSONObject getDataById(int userId) {

        try {
            OkHttpClient client = new OkHttpClient();

            RequestBody formBody = new FormEncodingBuilder()
                    .add(KEY_USER_ID, Integer.toString(userId))
                    .build();

            Request request = new Request.Builder()
                    .url(MAIN_URL)
                    .post(formBody)
                    .build();

            response = client.newCall(request).execute();
            return new JSONObject(response.body().string());

        } catch (IOException | JSONException e) {
            Log.e(TAG, "" + e.getLocalizedMessage());
        }
        return null;
    }
}

Step 7 : create a package adapter under main package ( in my example : package androidlabs.gsheets1😉 and create a class MyArrayAdapter.java and add the following code. Make sure that Adapter matches your defined requirements and make necessary changes if required.

package androidlabs.gsheets1.adapter;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.RelativeLayout;
import android.widget.TextView;

import androidlabs.gsheets1.R;
import androidlabs.gsheets1.model.MyDataModel;
import com.facebook.drawee.view.SimpleDraweeView;

import java.util.List;

public class MyArrayAdapter extends ArrayAdapter<MyDataModel> {

    List<MyDataModel> modelList;
    Context context;
    private LayoutInflater mInflater;

    // Constructors
    public MyArrayAdapter(Context context, List<MyDataModel> objects) {
        super(context, 0, objects);
        this.context = context;
        this.mInflater = LayoutInflater.from(context);
        modelList = objects;
    }

    @Override
    public MyDataModel getItem(int position) {
        return modelList.get(position);
    }

    @Override
    public View getView(int position, View convertView, ViewGroup parent) {
        final ViewHolder vh;
        if (convertView == null) {
            View view = mInflater.inflate(R.layout.layout_row_view, parent, false);
            vh = ViewHolder.create((RelativeLayout) view);
            view.setTag(vh);
        } else {
            vh = (ViewHolder) convertView.getTag();
        }

        MyDataModel item = getItem(position);

        vh.textViewName.setText(item.getName());
        vh.textViewCountry.setText(item.getCountry());

        return vh.rootView;
    }

    /**
     * ViewHolder class for layout.<br />
     * <br />
     * Auto-created on 2016-01-05 00:50:26 by Android Layout Finder
     * (http://www.buzzingandroid.com/tools/android-layout-finder)
     */
    private static class ViewHolder {
        public final RelativeLayout rootView;

        public final TextView textViewName;
        public final TextView textViewCountry;

        private ViewHolder(RelativeLayout rootView, TextView textViewName, TextView textViewCountry) {
            this.rootView = rootView;
            this.textViewName = textViewName;
            this.textViewCountry = textViewCountry;
        }

        public static ViewHolder create(RelativeLayout rootView) {
            TextView textViewName = (TextView) rootView.findViewById(R.id.textViewName);
            TextView textViewCountry = (TextView) rootView.findViewById(R.id.textViewCountry);
            return new ViewHolder(rootView, textViewName, textViewCountry);
        }
    }
}

Step 8 :  Now lets optimize the code by adding some utility feature i,.e checking internet connection and adding Keys in order to avoid confusion with the Attributes that are in Google Sheets. So create a Package util and create these 2 classes



InternetConnection.java

package androidlabs.gsheets1.utils;

import android.content.Context;
import android.net.ConnectivityManager;
import android.support.annotation.NonNull;


public class InternetConnection {

	/** CHECK WHETHER INTERNET CONNECTION IS AVAILABLE OR NOT */
	public static boolean checkConnection(@NonNull Context context) {
		return  ((ConnectivityManager) context.getSystemService
				(Context.CONNECTIVITY_SERVICE)).getActiveNetworkInfo() != null;
	}
}



 Keys.java

package androidlabs.gsheets1.utils;


public class Keys {

    public static final String KEY_CONTACTS = "Sheet1";
    public static final String KEY_NAME = "name";
    public static final String KEY_COUNTRY = "country";

}



Step 9 : Add or modify the manifest file with the below code

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="androidlabs.gsheets1">


        <uses-permission android:name="android.permission.INTERNET" />
        <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
        <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />

        <application
            android:icon="@mipmap/ic_launcher"
            android:label="@string/app_name"
            android:supportsRtl="true"
            android:theme="@style/AppTheme" >
            <activity
                android:name=".MainActivity"
                android:label="@string/app_name"
                android:theme="@style/AppTheme.NoActionBar" >
                <intent-filter>
                    <action android:name="android.intent.action.MAIN" />

                    <category android:name="android.intent.category.LAUNCHER" />
                </intent-filter>
            </activity>

        </application>

    </manifest>



Final Output :

Download Source Code
